What Is a Pipe Hydrostatic Testing Machine and What Does It Verify?
A pipe hydrostatic testing machine is a pressure-testing system used to evaluate the pressure resistance and integrity of steel pipes before they are delivered or put into service. Instead of relying only on visual inspection or dimensional measurement, hydrostatic testing exposes the finished pipe to controlled internal water pressure to determine whether it can withstand the specified test conditions without leakage or unacceptable deformation.
For a spiral welded pipe mill, this equipment is an important downstream quality-control system. After the spiral welding process produces a finished pipe, hydrostatic testing provides another level of verification for the pipe body and welded seam.
A modern hydro testing machine for pipe can control pressure, holding time and testing parameters while recording test results. This makes it suitable for high-volume steel pipe manufacturing where consistent inspection is required.
What Is a Pipe Hydrostatic Testing Machine?
A hydraulic testing machine for pipes uses water or another suitable test medium to pressurize the inside of a pipe. The pipe ends are sealed, the test medium is introduced, and pressure is increased to a specified level. The system then maintains the pressure for the required period while operators or automated controls monitor the result.
The basic testing sequence includes:
Positioning the pipe in the testing station.
Sealing both pipe ends.
Filling the pipe with water.
Removing trapped air where required.
Increasing internal pressure.
Maintaining the specified pressure.
Monitoring pressure stability and leakage.
Releasing pressure and removing the tested pipe.
TXH describes its steel pipe hydrostatic testing systems as using hydraulic pressure to check pipe strength and integrity, with automatic control available for pressure and testing parameters. Its product range includes solutions for large-diameter pipe, small-diameter pipe and ultra-high-pressure steel pipe.
What Does Hydrostatic Testing Verify?
The main purpose of hydrostatic testing is not to identify every possible defect in a pipe. Instead, it verifies whether the finished pipe can withstand the specified internal pressure without unacceptable leakage or failure.
Quality Aspect | What Hydrostatic Testing Can Indicate |
Pressure resistance | Whether the pipe withstands the specified test pressure |
Weld seam integrity | Whether the completed seam leaks under pressure |
Pipe-body integrity | Whether the pipe body remains intact during testing |
Leakage resistance | Whether water escapes through the seam or pipe wall |
Structural stability | Whether abnormal deformation occurs under pressure |
Manufacturing consistency | Whether finished pipes repeatedly meet test requirements |
This distinction is important. Hydrostatic testing is a pressure-integrity test, not a universal substitute for nondestructive inspection.
For example, radiographic or ultrasonic inspection may be used to identify specific internal or weld-related imperfections. ISO 10893-6:2019 specifically addresses radiographic testing of weld seams in welded steel tubes, while ISO 10893-8 covers automated ultrasonic testing for laminar imperfections.
Therefore, a complete pipe quality-control system may combine hydrostatic testing with ultrasonic, radiographic, dimensional and visual inspection.
Why Is Hydrostatic Testing Important for Spiral Welded Pipes?
The spiral pipe manufacturing process creates a continuous helical weld seam along the pipe. Because the finished product may be used to transport water, oil, gas or other fluids, pressure integrity is a critical quality consideration.
A hydrotester provides a practical final-stage verification after forming and welding.
If a completed spiral welded pipe develops leakage during the test, the manufacturer can investigate possible causes such as:
Weld seam discontinuities
Localized weak areas
Inadequate welding conditions
Pipe-body defects
End-sealing problems
Manufacturing or repair issues
The test therefore provides valuable feedback about the quality of the finished product.
For pipeline applications, testing requirements should always be established according to the applicable product specification and purchase requirements. The International Organization for Standardization maintains separate standards covering different nondestructive testing methods for steel tubes, demonstrating why hydrostatic testing should be considered part of a broader inspection strategy rather than an isolated quality test.
What Is the Difference Between Hydrostatic and Weld Inspection?
Hydrostatic testing and weld inspection answer different questions.
A hydrostatic tester asks:
“Can this finished pipe withstand the specified internal pressure without unacceptable leakage or failure?”
An X-ray or ultrasonic inspection system asks:
“Are there detectable internal or weld imperfections that meet the inspection criteria?”
This distinction is especially important when manufacturers use multiple inspection technologies in one production facility.
For example, an x ray welding machine or industrial radiographic inspection system can examine the weld seam for certain internal imperfections. ISO 10893-6:2019 specifies radiographic testing of welded steel tube weld seams for the detection of imperfections.
Hydrostatic testing, meanwhile, evaluates the pressure-bearing performance of the completed pipe.
Neither method automatically replaces the other.
Is Hydrostatic Testing Used for ERW Pipe?
Yes. Hydrostatic testing can also be part of quality control for ERW products.
In an ERW in pipe production environment, the weld is produced using electrical resistance heating and pressure. The finished pipe may subsequently undergo nondestructive testing and pressure testing depending on the product specification.
The same principle applies: hydrostatic testing evaluates pressure integrity, while other inspection methods can target specific surface, weld or internal imperfections.
The appropriate test sequence depends on the pipe standard, material, dimensions and intended application.
What Equipment Features Matter in a Hydro Tester?
When selecting a pipe hydrostatic testing equipment system, buyers should look beyond maximum pressure.
Important considerations include:
Pressure Control
The hydraulic system should be capable of reaching and maintaining the required test pressure with appropriate control accuracy.
Pressure and Time Recording
A useful hydrotester should record critical parameters such as applied pressure and test duration. This provides traceability for individual pipe sections.
Industry requirements may specify not only test pressure but also minimum holding time and recording requirements. For example, IOGP's supplementary requirements for API 5L/ISO 3183 line pipe specify recording the pipe number, test pressure, date and test duration for mill hydrostatic tests.
Safety System
Because hydrostatic testing involves high internal pressure, the equipment should incorporate appropriate pressure relief, interlocking and emergency protection.
Pipe Size Compatibility
The tester should match the manufacturer's product range. Large-diameter spiral pipes require a substantially different testing configuration from small-diameter tubes.

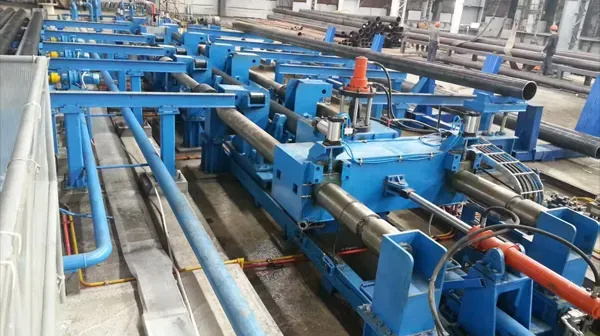

TXH separates its hydrostatic testing solutions into large-diameter, small-diameter and ultra-high-pressure configurations, reflecting the importance of matching the tester to the pipe specification.
Where Does a Hydrotester Fit in a Spiral Pipe Mill?
A hydro testing machine for pipe normally operates downstream of the main pipe-forming and welding process.
A simplified production relationship is:
Steel Coil → Forming → Spiral Welding → Pipe Cutting → Inspection → Hydrostatic Testing → Finishing → Delivery
The exact sequence can vary depending on the plant layout and inspection requirements.
For a complete spiral welded pipe project, hydrostatic testing may work alongside:
Ultrasonic pipe inspection
Industrial X-ray inspection

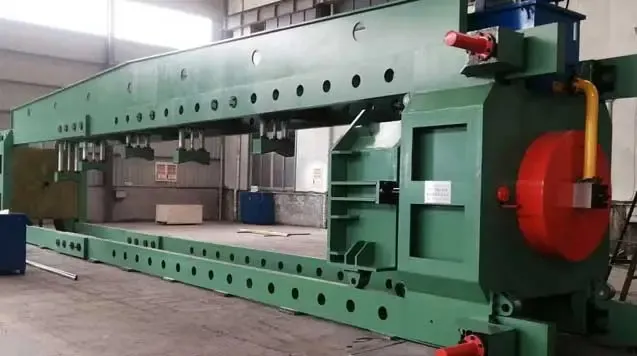

Pipe end expanding
Pipe chamfering
Dimensional inspection
Anti-corrosion coating
A tube chamfer machine, for example, performs a completely different function: it prepares the pipe end rather than verifying pressure integrity. Keeping these functions separate helps manufacturers design a more logical production and inspection workflow.
How Should Manufacturers Choose a Hydro Testing Machine?
The correct hydro testing machine for pipe should be selected according to the finished product rather than the machine's maximum advertised pressure.
Before requesting a quotation, manufacturers should define:
Minimum and maximum pipe diameter
Maximum wall thickness
Steel grade
Required test pressure
Test holding time
Production capacity
Pipe length
Automatic or manual operation
Data recording requirements
Applicable standards
For a spiral welded pipe plant, the testing machine should also be coordinated with the production line's output. If the hydrotester becomes a production bottleneck, overall plant efficiency can be reduced even when the spiral welding equipment itself has a high production capacity.
Why Choose TXH for Steel Pipe Hydrostatic Testing?
For manufacturers building or upgrading a spiral pipe production facility, TianxiangHao (TXH) provides hydrostatic testing equipment as part of a broader steel pipe machinery portfolio.
Its hydrotester range includes configurations for large-diameter, small-diameter and ultra-high-pressure steel pipe applications. The company also supplies related equipment such as pipe testing and expanding machines, industrial X-ray inspection equipment, ultrasonic testing equipment and pipe chamfering machinery.
This combination can be useful for manufacturers that want to connect hydrostatic testing with other finished-pipe inspection and processing stages rather than sourcing every system independently.
For a spiral welded pipe mill, the hydrotester should therefore be considered an important part of the overall quality-control solution, not simply an auxiliary machine.
FAQ About Pipe Hydrostatic Testing Machines
What is a pipe hydrostatic testing machine?
It is a machine that fills a pipe with water or another suitable test medium and applies controlled internal pressure to evaluate pressure resistance, leakage and overall integrity.
What defects can hydrostatic testing detect?
It can reveal leakage, pressure-related failures and some weak areas that become apparent when the pipe is subjected to the specified internal pressure. It does not replace all forms of nondestructive testing.
Is hydrostatic testing necessary for spiral welded pipe?
Whether it is required depends on the applicable product standard, contract and intended application. For pressure-bearing pipeline products, it is commonly an important part of final quality verification.
Can hydrostatic testing replace X-ray inspection?
No. X-ray inspection and hydrostatic testing evaluate different characteristics. Radiography can detect certain internal weld imperfections, while hydrostatic testing evaluates pressure integrity.
What should I consider when buying a hydro testing machine for pipe?
Consider pipe diameter, wall thickness, test pressure, holding time, production capacity, automation, pressure recording, safety systems and the standards applicable to the finished pipe.
Can one hydrotester handle different pipe sizes?
Yes, depending on its design and configuration. The required sealing, clamping and hydraulic systems must be matched to the manufacturer's pipe size range.
Conclusion
A pipe hydrostatic testing machine provides an important final verification step for steel pipe manufacturers. By applying controlled internal water pressure, it helps determine whether a completed pipe can withstand the specified test conditions without unacceptable leakage or pressure-related failure.
For spiral welded pipe production, hydrostatic testing complements—not replaces—other inspection methods such as ultrasonic and radiographic testing. A properly selected hydrotester should therefore be integrated into the overall production and quality-control strategy.
With different configurations for steel pipe testing and a broader range of pipe inspection and processing equipment, TXH can support manufacturers looking to build a more complete testing system around their spiral pipe production operations.
