Before delivery, finished spiral pipes usually require a hydrostatic test to verify their strength, sealing performance, and overall integrity. Unlike visual inspection or dimensional measurement, hydrostatic testing evaluates how the pipe performs when subjected to internal pressure, and this can help manufacturers identify potential problems before the products enter practical service.
During spiral pipe production, some defects may not be visible through conventional inspection methods, especially small leakage paths or weak areas that only appear under pressure. Hydrostatic testing provides a practical method to verify whether a finished pipe can withstand specified pressure requirements. By filling the pipe with water and applying controlled hydraulic pressure, manufacturers can evaluate the pipe’s ability to maintain pressure without leakage or abnormal deformation.

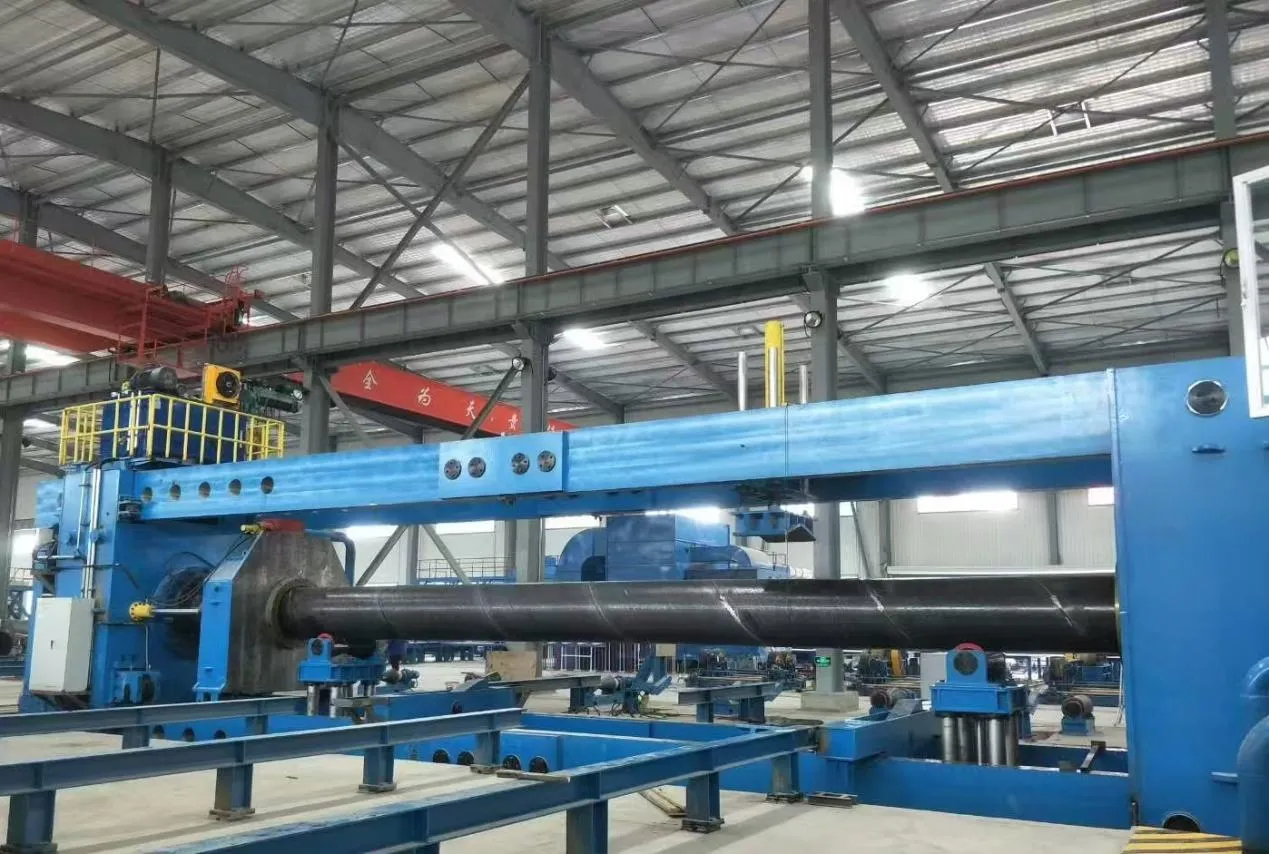

A complete spiral welded pipe production line normally includes forming equipment, welding systems, cutting machines, and finishing equipment. After production, inspection equipment such as hydrostatic testing machines helps verify whether the finished pipes meet required standards. Therefore, hydrostatic testing is not an independent process but an important part of a complete steel pipe manufacturing solution.
For steel pipe manufacturers, quality acceptance is closely related to customers’ confidence. A completed hydrostatic test provides measurable inspection data, and these records help establish a more complete quality control process and provide customers with greater assurance regarding product performance.
The spiral welding process creates a continuous helical seam along the pipe body. Some factors like welding parameters, material conditions, or production fluctuations may affect seam quality.
Hydrostatic testing can reveal whether welded areas maintain proper sealing performance under pressure. If a pipe cannot hold the required pressure during testing, manufacturers can identify the issue and prevent unqualified products from reaching customers. So hydrostatic testing is an important supplement to other inspection technologies. Hydrostatic tests can also work together with ultrasonic pipe testing equipment (Internal Link) to improve weld inspection accuracy and ensure better product reliability.
Steel pipes used in pressure applications must withstand internal forces during operation. Though a pipe performs well during manufacturing, it may still require confirmation under simulated working conditions.
In a hydrostatic test, water is injected into the pipe, air is removed, and then pressure is gradually increased to the specified testing level. The pipe is then maintained at that pressure for a certain period while the system monitors pressure stability. This shows whether the pipe structure remains reliable when exposed to internal pressure.
The typical testing procedure is the several steps:
The finished spiral pipe is positioned on the testing machine.
Both pipe ends are sealed to create a closed testing environment.
Water is introduced into the pipe.
Internal pressure is increased gradually through the hydraulic system.
The required pressure is maintained for a specified time.
The system monitors pressure changes and checks for leakage.

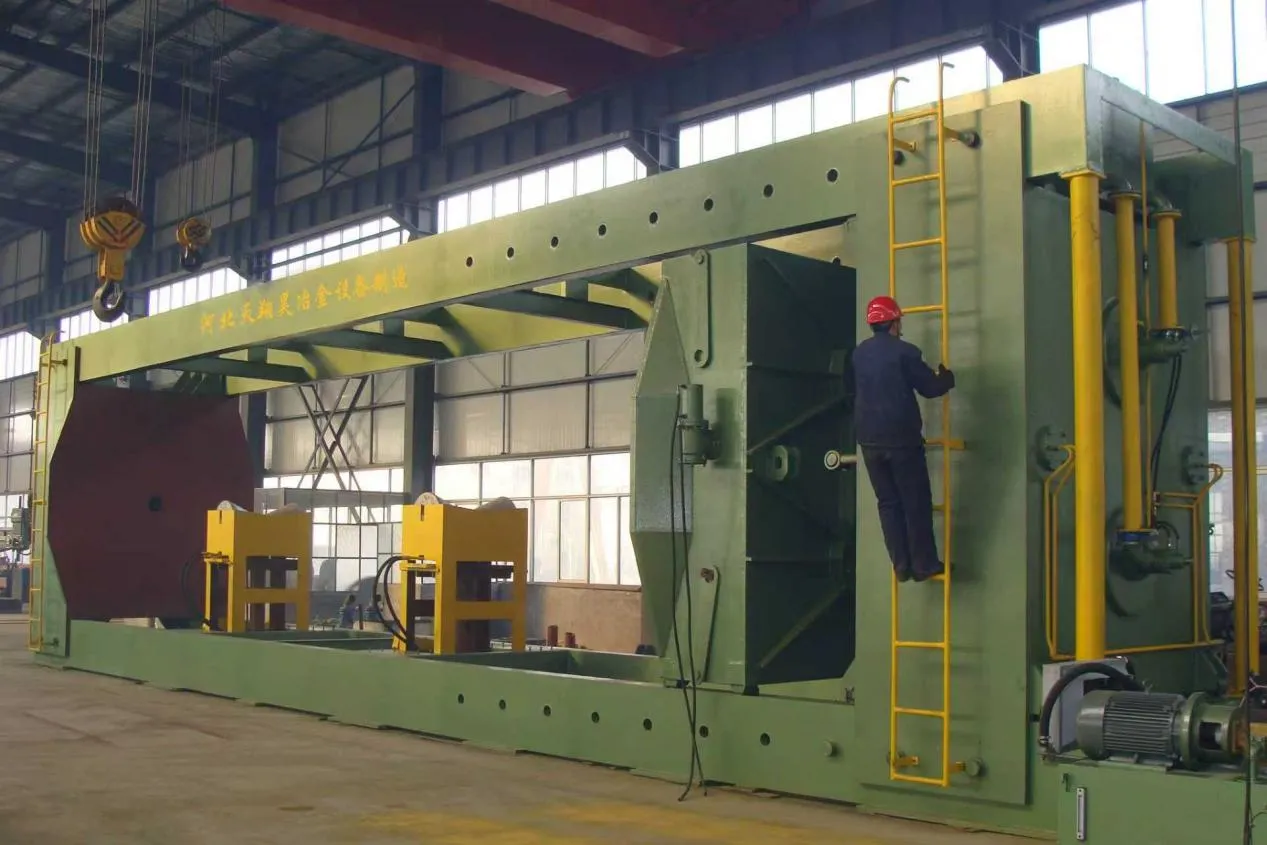

A professional pipe hydrostatic testing machine integrates sealing, water supply, pressurization, and control systems to achieve stable and repeatable testing results. For continuous steel pipe manufacturing, a reliable pipe hydrotest machine (Internal Link) helps automate pressure testing procedures and improves inspection efficiency after welding and forming processes.
Case Study: Hydrostatic Testing Solution for Small Diameter Steel Pipes in the USA
For steel pipe manufacturers producing small and medium diameter pipes, stable pressure control and reliable sealing performance are essential in the final inspection.
TianxiangHao supplied a hydrostatic testing machine for a US customer, designed for steel pipes with diameters ranging from 254 mm to 508 mm. The equipment helps verify pipe strength and leakage performance after production, ensuring that finished pipes meet quality requirements before delivery.
Water has very low compressibility compared with gases, which makes it safer and more controllable to test steel pipes under high pressure. So, compared with pneumatic testing methods, water-based testing allows manufacturers to apply pressure more safely while accurately evaluating pipe sealing performance and structural stability.
Modern hydrotesters use hydraulic control systems to maintain accurate pressure levels and testing conditions. Professional pipe hydrostatic testing equipment helps reduce manual operation differences and provides more consistent inspection results for large-scale pipe production.
For spiral pipe manufacturers, inspection speed directly affects overall production efficiency. A properly configured hydrostatic testing machine can match the output of the production line and prevent testing from becoming a bottleneck.
Advanced testing systems can record important parameters, including pressure values and testing duration. These records support quality management and help manufacturers respond to customer documentation requirements.
When choosing a hydrotester, manufacturers should consider several factors:
Pipe diameter range
Pipe length
Wall thickness
Required test pressure
Production capacity
Automation level
Integration with existing production equipment
The correct equipment configuration should match the actual production requirements instead of focusing only on maximum pressure capability.
For different applications, TianxiangHao provides hydrostatic testing solutions for large diameter pipes, small diameter pipes, and high-pressure steel pipe applications.
Case Study: Large Diameter Pipe Hydrostatic Testing Project in Brazil
Large diameter spiral pipes require hydrostatic testing systems with sufficient capacity and stable performance.
For a Brazilian steel pipe project, TianxiangHao provided a hydrostatic testing solution for pipes with diameters ranging from 630 mm to 3620 mm. The system was designed to support large diameter pipe inspection and help manufacturers complete pressure verification during the final quality control stage. This highlights the importance of selecting a hydrotester according to pipe dimensions, production requirements, and inspection standards.
As a steel pipe machinery manufacturer, TianxiangHao provides complete solutions covering spiral welded pipe production lines, pipe testing equipment, and related processing systems.
The steel pipe hydrostatic pressure testing machine is designed to help manufacturers verify pipe strength, sealing performance, and pressure resistance after production. By integrating reliable hydraulic systems and controlled testing procedures, TianxiangHao supports efficient quality inspection for different steel pipe applications.
For manufacturers seeking to improve their production reliability, a properly selected hydrotester can become an important part of their overall pipe manufacturing system.
Final quality verification is essential to ensure that every finished pipe can meet real operating requirements. Hydrostatic is able to evaluate pressure resistance, detect leakage risks, and confirm product reliability before delivery. By integrating an efficient hydrotester into the production process, steel pipe manufacturers can improve quality control and provide more dependable products.
